ANOVA Explained: A Beginner’s Guide to Analysis of Variance

Summary: ANOVA (Analysis of Variance) is a statistical method to compare means across multiple groups. This guide simplifies ANOVA, explaining its purpose, assumptions, and how to interpret results. Ideal for beginners, it provides a practical understanding for Data Analysis and decision-making.

Introduction

Ever wondered how researchers determine if a new drug is more effective than existing ones, or if different teaching methods significantly impact student scores? Or perhaps how marketers know which advertising campaign drives the most engagement across various platforms? The answer often lies in a powerful statistical technique called Analysis of Variance, or ANOVA.

If you’re new to statistics or Data Analysis, the term “ANOVA” might sound intimidating. But fear not! This guide is designed to break down ANOVA into simple, understandable concepts. We’ll explore what it is, why it’s useful, how it works, and where you might encounter it in the real world.

Whether you’re a student, a budding researcher, or just curious about data, understanding ANOVA is a valuable skill. Let’s dive in!

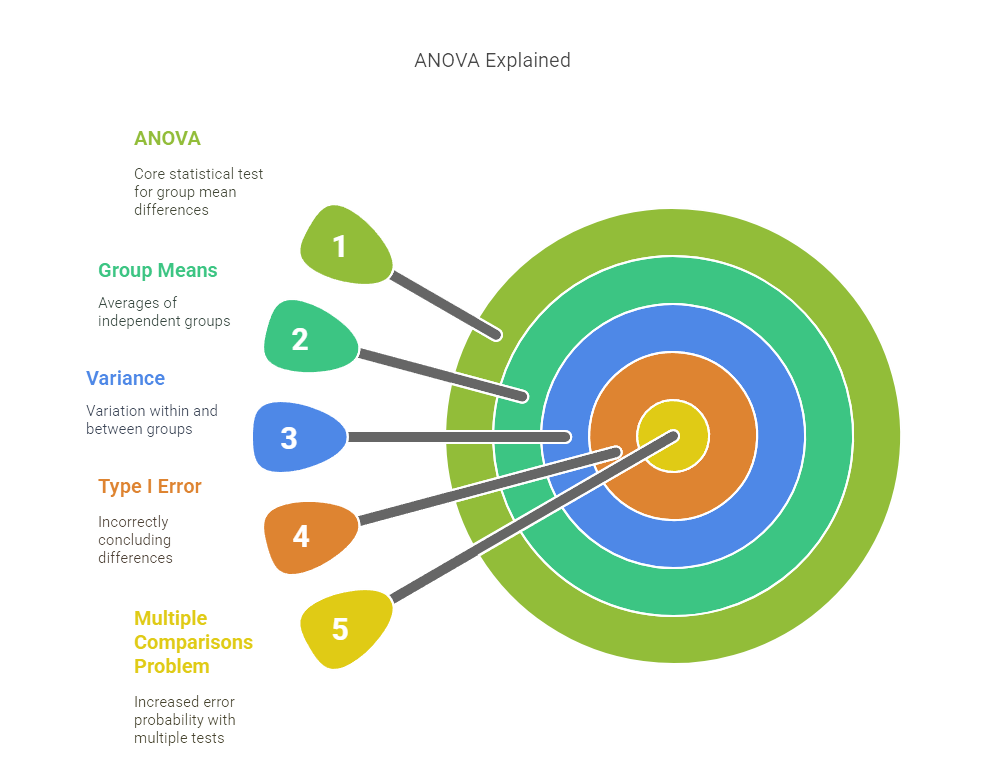

What is ANOVA?

At its core, ANOVA (Analysis of Variance) is a statistical test used to determine whether there are any statistically significant differences between the means (averages) of three or more independent groups.

Think of it this way: while a t-test is great for comparing the means of two groups (e.g., comparing test scores between students who used study guide A vs. study guide B), ANOVA extends this capability to situations with three or more groups (e.g., comparing scores for study guides A, B, and C).

Why not just run multiple t-tests between all pairs of groups? Doing so increases the probability of making a Type I error – incorrectly concluding there’s a difference when one doesn’t actually exist. ANOVA cleverly avoids this “multiple comparisons problem” by testing all group means simultaneously.

The fundamental question ANOVA answers is: “Are the observed differences between the group means likely due to real effects, or could they simply be due to random chance or sampling variability?”

It does this by analysing variances. It compares the variation between the group means to the variation within each group. If the variation between the groups is significantly larger than the variation within the groups, we have evidence to suggest that the group means are indeed different.

ANOVA Formula Explained

While statistical software handles the heavy calculations, understanding the concept behind the ANOVA formula is crucial. The central statistic in ANOVA is the F-statistic (also called the F-ratio).

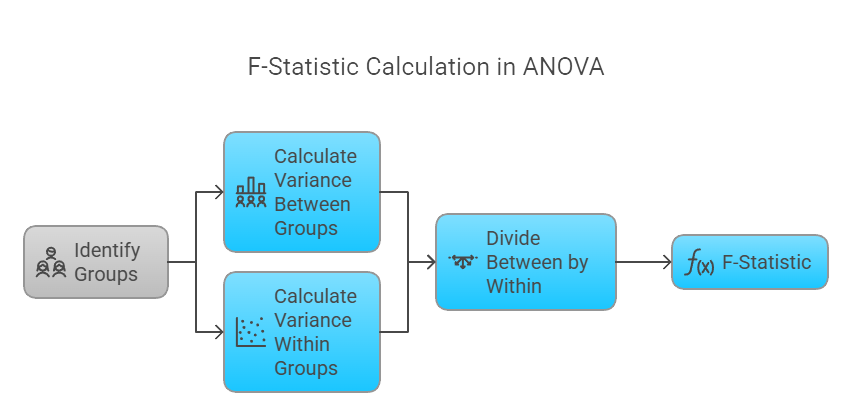

Conceptually, the F-statistic is calculated as:

F = Variance Between Groups / Variance Within Groups

Let’s break this down:

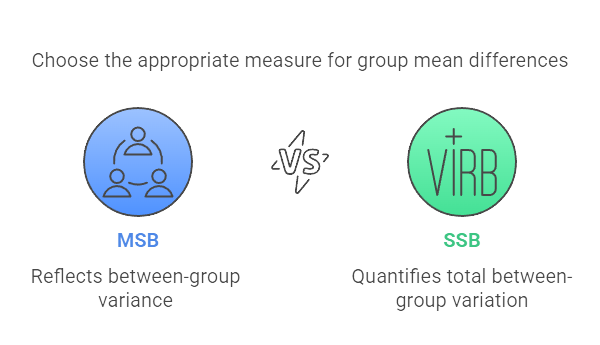

Variance Between Groups (Mean Square Between, MSB)

This measures how much the means of each group differ from the overall mean of all the data combined. A larger MSB indicates that the group means are spread far apart. It reflects the effect of the independent variable (the factor defining the groups).

Calculation involves: Sum of Squares Between groups (SSB) divided by its degrees of freedom (dfB). SSB quantifies the total variation attributed to the differences between the group means.

Variance Within Groups (Mean Square Within, MSW)

This measures the average amount of variation inside each individual group. It represents the random, unexplained variability or “noise” within the data that isn’t accounted for by the independent variable. A smaller MSW indicates that data points within each group are clustered closely around their respective group mean.

Calculation involves: Sum of Squares Within groups (SSW) divided by its degrees of freedom (dfW). SSW quantifies the total variation attributed to differences within each group.

So, the F-statistic (F = MSB / MSW) essentially compares the variability explained by the factor defining the groups (the treatment, condition, category, etc.) to the unexplained variability within the groups.

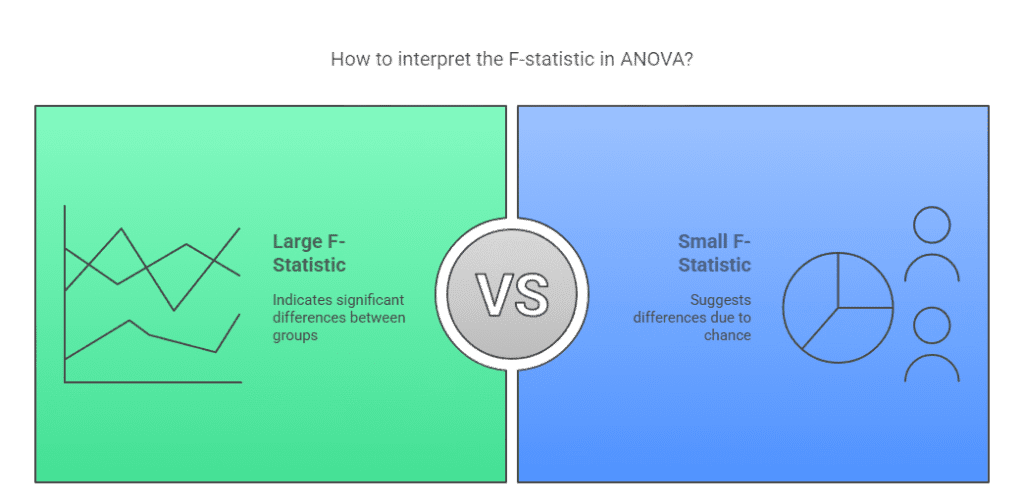

If F is large: The variation between groups is significantly larger than the variation within groups. This suggests the differences between group means are unlikely due to chance, leading us to reject the null hypothesis (that all group means are equal).

If F is small (close to 1): The variation between groups is similar to the variation within groups. This suggests the differences between group means could plausibly be due to random chance, leading us to fail to reject the null hypothesis.

To determine if the F-statistic is “large enough,” we compare it to a critical value from the F-distribution (based on degrees of freedom) or, more commonly, we look at the p-value associated with the F-statistic. A small p-value (typically < 0.05) indicates statistical significance.

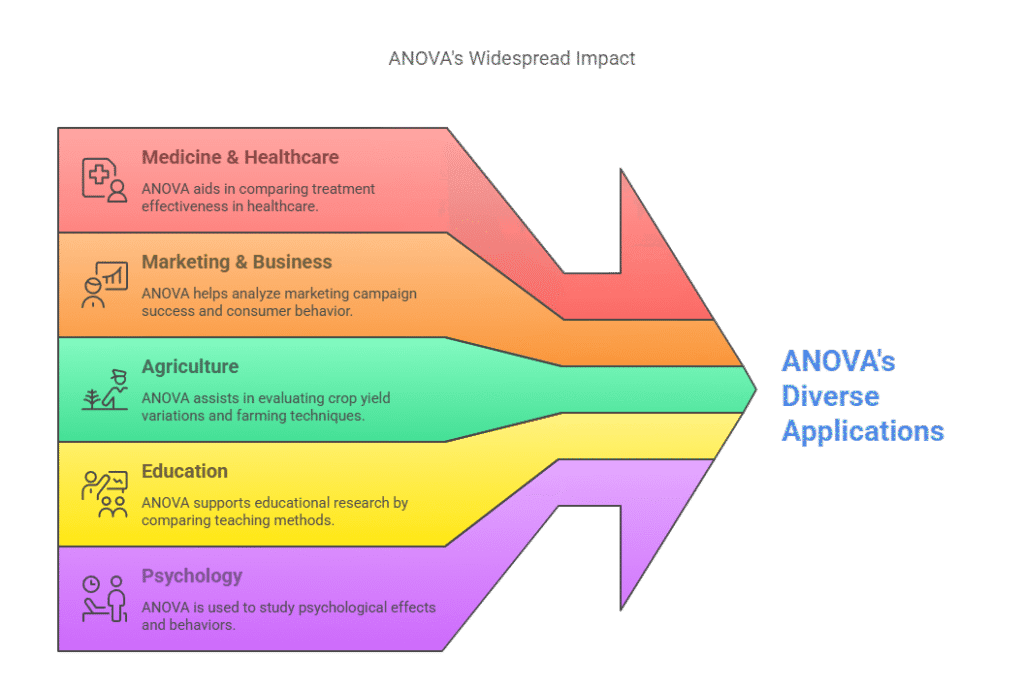

Real-World Applications of ANOVA

ANOVA isn’t just a theoretical concept; it’s widely used across various fields:

Medicine & Healthcare

Comparing the effectiveness of three or more different drugs or treatments on patient recovery times or symptom reduction. (e.g., Does Drug A, Drug B, or a Placebo lead to significantly different reductions in blood pressure?)

Marketing & Business

Evaluating the impact of different advertising campaigns (e.g., social media, TV, print) on sales figures or customer engagement metrics across different regions.

Agriculture

Testing the effect of various fertilizers or soil types on crop yield. (e.g., Does Fertilizer X, Y, or Z produce significantly different amounts of corn per acre?)

Manufacturing

Comparing the durability or performance of products manufactured using different processes or materials. (e.g., Are widgets made by Machine 1, Machine 2, or Machine 3 significantly different in strength?)

Education

Assessing whether different teaching methods (e.g., lecture, group work, online module) lead to significantly different student test scores.

Psychology

Investigating the effect of different therapeutic approaches on reducing anxiety levels across patient groups.

In essence, any scenario where you need to compare the average outcome (a continuous variable) across three or more distinct categories (groups) is a potential application for ANOVA.

Understanding the ANOVA Table

When you run an ANOVA test using statistical software (like SPSS, R, Python, or even Excel), the results are typically presented in a standardized format called an ANOVA table. Understanding this table is key to interpreting the results.

Here’s a breakdown of the typical columns:

• Source of Variation: Indicates where the variability comes from (differences Between groups or random variation Within groups).
• Sum of Squares (SS): Quantifies the total amount of variation for each source.
• Degrees of Freedom (df): Represents the number of independent pieces of information used to calculate the SS. (k = number of groups, N = total number of observations).
• Mean Square (MS): Represents the average variation, calculated by dividing SS by df (SS/df). This is the variance estimate for each source.
• F-statistic: The ratio of the Mean Square Between (MSB) to the Mean Square Within (MSW). This is the core test statistic.
• p-value: The probability of observing an F-statistic as large as (or larger than) the one calculated, assuming the null hypothesis (that all group means are equal) is true.

Interpretation

The most important values for drawing a conclusion are the F-statistic and the p-value. If the p-value is less than your chosen significance level (commonly α = 0.05), you reject the null hypothesis and conclude that there is a statistically significant difference between at least two of the group means.

Different Types of ANOVA Methods

While the core principle remains the same, ANOVA comes in different flavours depending on the study design, specifically the number of independent variables (factors) being investigated.

The most common types are:

1. One-Way ANOVA: Used when you have one independent variable (factor) with three or more levels (groups).
2. Two-Way ANOVA: Used when you have two independent variables (factors) and you want to examine their individual and combined effects on the dependent variable.
3. N-Way ANOVA (Factorial ANOVA): An extension for three or more independent variables.
4. MANOVA (Multivariate Analysis of Variance): Used when you have more than one dependent variable.

For beginners, understanding One-Way and Two-Way ANOVA provides a solid foundation.

One-Way ANOVA

This is the simplest form of ANOVA. It is used to compare the means of three or more groups based on one factor (independent variable).

Example

Comparing the average test scores (dependent variable) of students who used one of three different study methods (independent variable with 3 levels/groups: Method A, Method B, Method C).

Hypotheses

• Null Hypothesis (H₀): The means of all groups are equal (μ₁ = μ₂ = μ₃ = … = μk).
• Alternative Hypothesis (H₁): At least one group mean is different from the others.

Assumptions

• Independence of observations.
• Normality (data within each group should be approximately normally distributed).
• Homogeneity of variances (variances within each group should be roughly equal – checked using tests like Levene’s test).

If the One-Way ANOVA yields a significant result (p < 0.05), it tells you that there’s a difference somewhere among the group means, but not which specific groups differ. For that, you need to perform post-hoc tests (like Tukey’s HSD, Bonferroni, Scheffé).

Two-Way ANOVA

This type adds another layer of complexity and insight. It is helpful in examining the influence of two different factors (independent variables) on one dependent variable. It also allows you to check for an interaction effect between the two factors.

Example

Investigating how crop yield (dependent variable) is affected by both fertilizer type (Factor A: Type 1, Type 2, Type 3) and watering frequency (Factor B: Daily, Weekly).

Effects Tested

• Main Effect of Factor A: Does fertilizer type significantly affect yield, regardless of watering frequency?
• Main Effect of Factor B: Does watering frequency significantly affect yield, regardless of fertilizer type?
• Interaction Effect (A x B): Does the effect of fertilizer type on yield depend on the watering frequency (or vice-versa)? For instance, maybe Fertilizer Type 1 works best only with daily watering, while Type 2 works best with weekly watering.

Hypotheses

Separate null and alternative hypotheses are tested for each main effect and the interaction effect.

Assumptions

Similar to One-Way ANOVA (independence, normality, homogeneity of variances), applied across all the cells formed by the combination of factor levels.

Two-Way ANOVA is powerful because it provides a more nuanced understanding of how multiple factors simultaneously influence an outcome.

Step-by-Step Solved Examples on ANOVA

Let’s walk through the interpretation process with conceptual examples. We’ll assume the calculations were done using software.

Example 1: One-Way ANOVA

A company wants to know if three different training programs (Program A, Program B, Program C) result in different average employee productivity scores. They randomly assign employees to one program and measure productivity after one month.

• Factor: Training Program (3 Levels: A, B, C)
• Dependent Variable: Productivity Score
• Hypotheses:
  • H₀: μ<0xE2><0x82><0x90> = μ<0xE2><0x82><0x91> = μ<0xE2><0x82><0x92> (The mean productivity scores for all programs are equal).
  • H₁: At least one program’s mean productivity score is different.
• Sample ANOVA Table Output:

• Interpretation:
  1. Look at the p-value for the ‘Program’ row (the factor). Here, p = 0.004.
  2. Compare the p-value to the significance level (α = 0.05). Since 0.004 < 0.05, we reject the null hypothesis (H₀).
  3. Conclusion: There is a statistically significant difference in mean productivity scores among the three training programs.
• Next Step: Since the ANOVA is significant, perform post-hoc tests (e.g., Tukey’s HSD) to find out which specific pairs of programs differ significantly (e.g., Is A different from B? Is B different from C? Is A different from C?).

Example 2: Two-Way ANOVA

A researcher studies the effect of Diet (Factor A: Low Carb, Mediterranean) and Exercise Intensity (Factor B: Low, High) on weight loss (Dependent Variable) after 3 months.

• Factors: Diet (2 Levels), Exercise (2 Levels)
• Dependent Variable: Weight Loss (kg)
• Hypotheses: Separate hypotheses for Diet main effect, Exercise main effect, and Diet*Exercise interaction.
• Sample ANOVA Table Output (Simplified):

• Interpretation:
  1. Diet Main Effect: p = 0.001 (< 0.05). Significant. Overall, there’s a difference in weight loss between the Low Carb and Mediterranean diets (averaging across exercise levels).
  2. Exercise Main Effect: p < 0.001 (< 0.05). Significant. Overall, there’s a difference in weight loss between Low and High intensity exercise (averaging across diets).
  3. Diet * Exercise Interaction Effect: p = 0.015 (< 0.05). Significant. This is crucial! It means the effect of diet on weight loss depends on the exercise intensity (or vice-versa). For example, maybe the Low Carb diet leads to much more weight loss only when combined with High intensity exercise, but shows little difference from Mediterranean with Low intensity exercise.

Conclusion

Both diet and exercise significantly impact weight loss, and importantly, how they impact weight loss depends on their combination (significant interaction). Further analysis (e.g., plotting means, simple effects tests) is needed to understand the nature of this interaction.

Conclusion

Analysis of Variance (ANOVA) is a fundamental and versatile statistical tool for comparing the means of three or more groups. From One-Way ANOVA for single-factor comparisons to Two-Way ANOVA for exploring multiple factors and their interactions, this technique provides valuable insights across countless disciplines.

While software performs the calculations, understanding the concepts behind the F-statistic, the ANOVA table, and the different types of ANOVA empowers you to interpret results correctly and draw meaningful conclusions from data. Mastering ANOVA is a significant step towards becoming proficient in Data Analysis.

Frequently Asked Questions (FAQs)

When Should I Use ANOVA Instead of Multiple T-Tests?

Use ANOVA when comparing the means of three or more groups based on a single independent variable. Performing multiple t-tests between pairs inflates the chance of a Type I error (false positive). ANOVA tests all groups simultaneously, controlling the overall error rate, making it statistically more robust.

What Does The P-Value in an ANOVA Test Tell Me?

The p-value indicates the probability of observing the data (or more extreme data) if the null hypothesis (all group means are equal) were true. A small p-value (typically < 0.05) suggests this is unlikely, leading you to reject the null hypothesis and conclude a significant difference exists somewhere among the group means.

What Are Post-Hoc Tests, And Why Are They Needed After ANOVA?

If ANOVA shows a significant difference (p < 0.05), it doesn’t specify which group means differ. Post-hoc tests (like Tukey’s HSD, Bonferroni) are follow-up tests performed after a significant ANOVA. They conduct pairwise comparisons between group means while controlling the overall error rate, pinpointing the specific significant differences.
